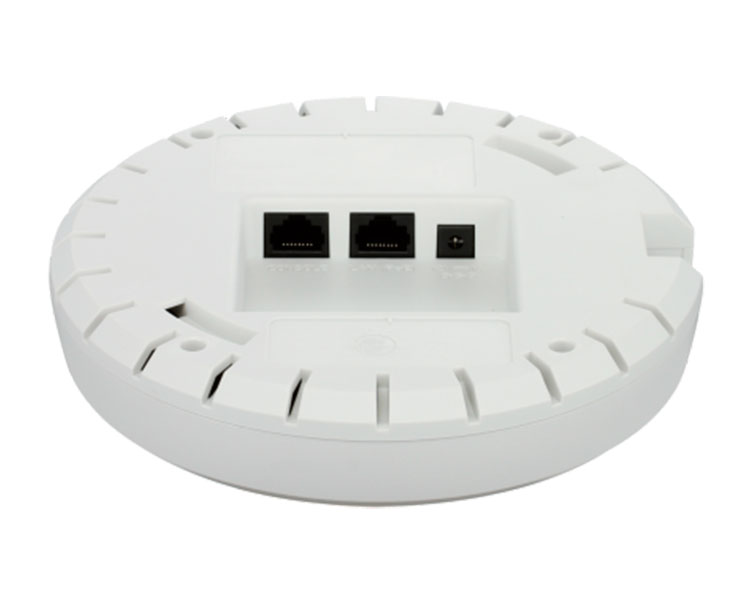

The DWL-2600AP is an entry level indoor Access Point (AP) designed to meet the business needs of companies of all sizes. Its low profile and sleek design means it can be deployed in a variety of business environments. The AP can work in standalone mode for initial deployment and then augmented by adding D-Link’s Unified Switch solutions like the DWC-1000 Wireless Controller or the advanced DWS-3160/DWS-4026 Unified Switch Series to provide centralised wireless LAN management.
SYSTEM
Wi-Fi Interface
Lan Interface
Console
Antenna
- 2x2 MIMO embedded antenna
Power Method
- IEEE 802.3af Power Over Ethernet or external power adapter
Wireless Frequency
- 802.11b/g/n: 2.4 GHz - 2.4835 GHz
Data Transfer Rate
- 802.11n: 6.5 Mbps - 300 Mbps
- 802.11g: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
- 802.11b: 11, 5.5, 2 and 1 Mbps
System Management
- HTTP/HTTPS Web-based User Interface
- SNMP, SSH, Telnet Command Line
SECURITY
SSID
- 16 SSID
- Station Isolation
Wireless Security
- WPA Personal/ Enterprise
- WPA2 Personal/ Enterprise
Detection & Prevention
- Rogue and Valid AP Classification
Authentication
- MAC Address Filtering
- 802.1x
PHYSICAL & ENVIRONMENTAL
Power Adapter
Power over Ethernet
- 10/100 Mbps PoE (802.3af) input
Stand-Alone Mode
- WPA/WPA2 Security
- Rogue AP Detection
- Station Isolation
- MAC Address Filtering
- AP Load Balancing Setup
- WDS
- AP Clustering
- QoS/WMM
- Local Storage Configuration
Managed Mode
(Managed by D-Link Wireless Switch/Wireless Controller)
- Centralized Management
- Centralized Firmware Dispatch
- Visualized AP Management Tool
- Auto-Power Adjustment
- Dynamic Auto-Channel Selection
- L2 Fast Roaming
- L3 Fast Roaming
- Captive Portal
- WPA/WPA2 Security
- Rogue AP Detection
- Rogue AP Mitigation
- WIDS
- Station Isolation
- MAC Address Filtering
- AP Load Balancing Setup
- WDS
- QoS/WMM
Dimensions
- 160 x 160 x 45 mm (6.30“x 6.30” x 1.77")
Weight
Operating Temperature
- 0° to 40°C (32°F to 104°F)
Operating Humidity
- 10% to 90% non-condensing
EMI/EMC/RF
- FCC Class B
- CE Class B
- C-tick,
- IC
- VCCI
- NCC
- TELEC
- Wi-Fi®
Safety
- cUL
- LVD (EN60950-1)
- EN60601-1-2
